（N50）

N50 Spraying Helicopter

N50 spraying helicopter has the advantages of long endurance, high efficiency and easy maintenance ,etc. It is a powerful tool for your plant protection work .
Send Email
Chat Now

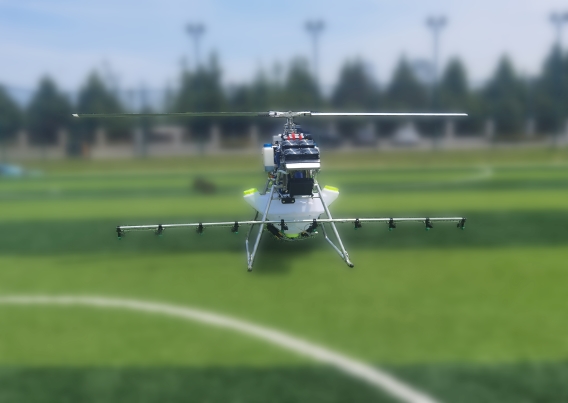

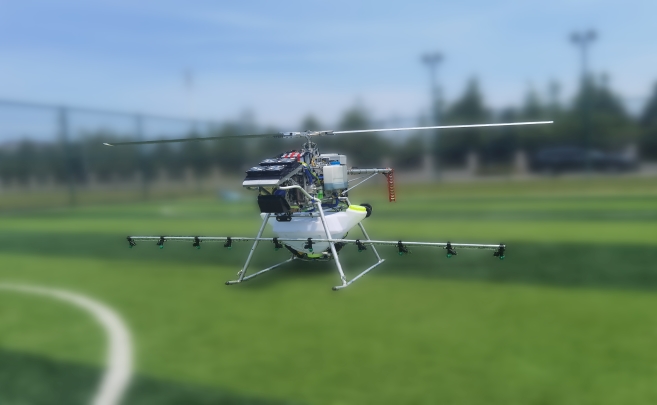

N50 Spraying Helicopter
Spraying Helicopter(N50) introduction
N50 spraying helicopter has the advantages of long endurance, high efficiency and easy maintenance ,etc. It is a powerful tool for your plant protection work .
It is easy to operate because of many advanced functions with it, such as autonomous flight, break point return , obstacle avoidance , etc.
The Main Parameter
Main Parameter
Item Index
Dimensions（L*W*H）
2.9m*7.5m*1m
Net weight 75kg
Max Take-off weight 75kg
Payload 133kg
Fuel Tank Volume 10L
The Diameter Of Main Propeller 3.435m
The Material Of Main Propeller alufer

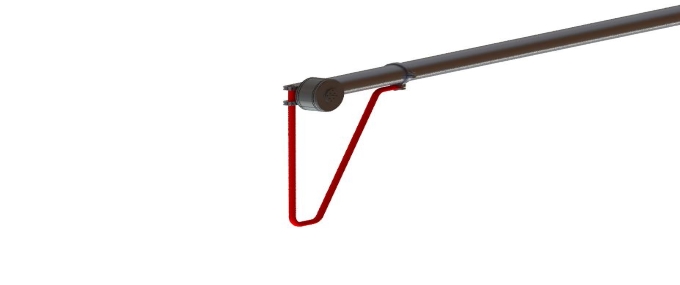

Spraying rod length
 2.72m
Maximum work efficiency 0.5-1.3hm/min
The Temperature For Application -20℃-45℃
Durable Time ≥60 min

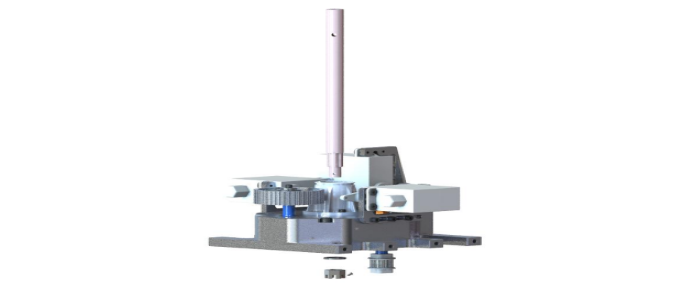

Quick removal of the spindle structure, strong, simple and reliable,so pilots can start after simple training, greatly reduce the after-sales pressure, improve the work efficiency of the aircraft.

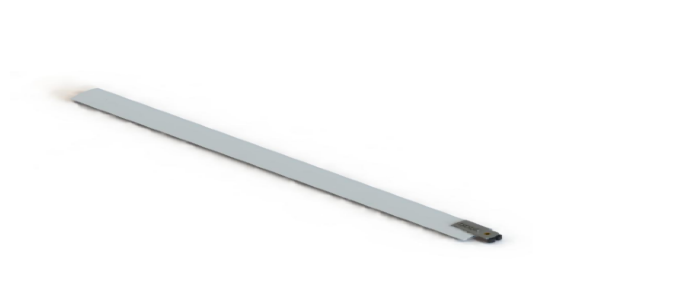

The domestic plant protection industry is the first patent aluminum alloy blade to make the use cost greatly reduced.The structure is rigid,will not be damaged by touching weeds and small branches,more solid and durable,

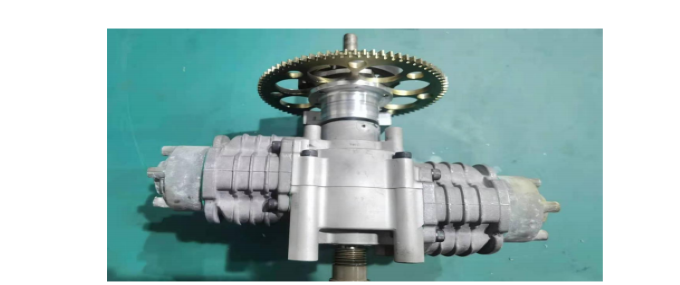

Independent research and development of high-power water-cooled unmanned helicopter special engine.So we can offer spare parts for our partner on time.
The oil-operated single-rotor plant protection drone is simple in structure, easy to learn and repair. It makes the complex simple, and the pilot can be replaced by itself.
